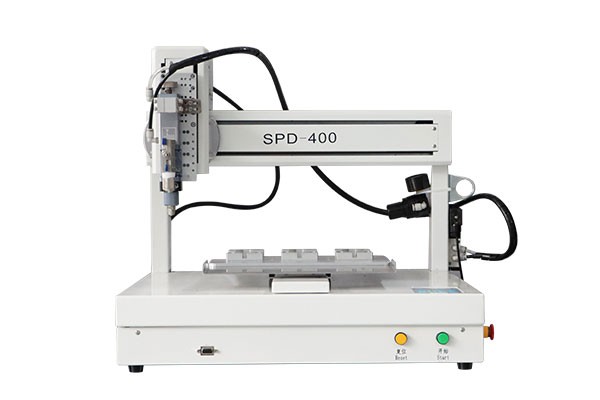

Junction-Box Gluing Machine|Radiant Pv Solar

Junction-Box Gluing Machine|Radiant Pv Solar

1.Machine trip:X-axis 400 mm * Y-axis 400 mm * Z-axis 100 mm;

2.Machine dimensions : 700 *620*600 mm;

3.Motion system repeatability: ±0.1mm;

4.Step-by-step control, Spatial three-dimensional motion system;

5.Speed range : 1~ 500mm/s;

6.Operating mode : Button mode;

7.Comprehensive 3-dimensional drawings support: hi-speed and continuous interpolations, such as 3-dimensional linear interpolation, and 3-dimensional arc interpolation. Capabilities of teaching 3D graphics and user-defined 3D array;

8.Programmer can quickly and easily through a direct response product programming, a variety of graphics locus of teaching, jog control, and coordinate input mode and flexible switch. Fast processing point, straight line, arc, the whole round, oval and other graphics, accurate and convenient for speed, out of plastic volume control can be set platform range, speed, load and other characteristics;

9.To provide direction for a variable array of controls, file copy control, a number of advanced features such as graphics link control;

10.To provide single-step, multi-point simulation, single-color processing, the overall processing, recycling and processing a variety of automatic processing mode;
